Axial Flow fans are the equipments which draws air axially and throw axially in same direction.
These fans have number of aluminum die cast fixed /adjustable aerofoil blade capable to handle large volume of air.
Available Drive arrangements are : Direct drive and belt drive.
Available mounting arrangements are : Wall Mounted (Short casing) and Duct Mounted (long Casing)
Same impellers are used in Roof Exhausters, Bifurcated fans, tunnel ventilation fans (Two stage axial flow fans), man coolers etc
These fans are generally used for exhausting stale air or fumes from processes (such as spray painting booths), supplying ambient air, and general spot ventilation of people, Dry D.G. room ventilation or machinery cooling
Available Range of Axial Flow Fans ( Standard, Bifurcated, Roof Exhauster & Man Coolers):
Start from 300 mm diameter to 16000 mm
Air Qty from 1000 m3/hr to 90,000 m3/hr
Static pressure 3 mmwg to 40 mmwg
Axial fans are a type of industrial fan that is widely utilized nowadays. These fans are employed in situations that require a higher flow rate while maintaining a minimal pressure gain. Axial fans, also known as axial flow fans, have grown in popularity throughout time. Axial tube fans are one of them. These fans are presently utilised for a variety of purposes, including drying, cooling, ventilation, and air supply for any machine or industrial process. These fans have a lot of traction because of the specific advantages they get from their regular construction.

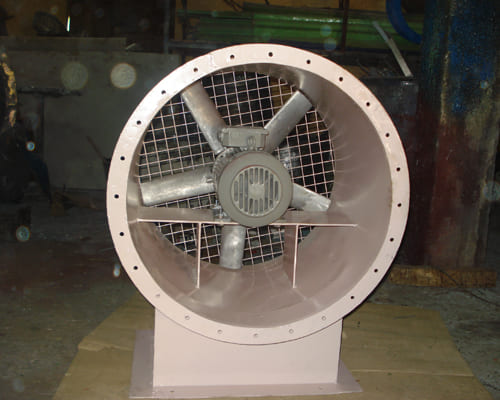

A tube axial fan is a type of industrial fan that consists of a disk-shaped wheel or propeller enclosed in a cylindrical tube-like construction. The main difference between this fan and a vane axial fan, another prominent axial flow fan variation, is that it lacks straightening guide vanes. The propellers or wheels are arranged in such a way that there is just a little space between the housing and the blade, which aids in fan efficiency.
Aastha Enviro Systems Pvt. Ltd is one of the most reputed manufacturers of Axial Flow Fan, Tube Axial Fan, and Axial Flow Fan in Delhi. Axial Flow Fans are available from us. We're also one of the few recognised organisations offering Axial Flow Fans, which have gaseous air flowing parallel to the impeller axis. Our Axial Flow Fan is available in a variety of sizes and can handle a variety of volumes and pressures.
The Axial Flow Fan is made of an MS casing/bracket and a cast aluminium alloy impeller with aerofoil section blades that may be installed in a variety of ways. Axial Flow Fans, sometimes known as roof extractors, are used in industry for general ventilation, fume exhaust, and hot spot removal.
Axial fans can handle massive amounts of air at low pressures while making relatively little noise. When compared to centrifugal fans, axial fans offer the following benefits:
- Reduced Cost
- The impeller includes movable blades, allowing the fan to be tailored to the needs of the facility.
- Space requirements are reduced.
- Shorter ducts result in a cheaper system cost. Due to the kind or temperature of the gases/fumes involved, belt driven axial fans are utilised in situations where the motor must be kept out of the airstream.
- Another benefit is the motor's accessibility, which allows for simple maintenance.
Axial flow fans- Axial fans are often used to circulate fresh air, expel stale air or odours from operations (like paint spray booths), and provide general spot cooling of persons, spaces, or equipment. They normally come in direct-driven types with the propeller placed on the motor shaft and belt-driven ones, both of which are intended to handle huge quantities of air at low pressure (SP).Mild steel is the material utilised to build industrial axial fans. However, certain applications could call for stainless steel or coatings for chemical resistance with aluminium propellers or all aluminium for spark resistance. Additionally, some applications could call for the fan to be belt-driven, with the motor outside the airstream and not susceptible to air stream conditions. Aastha enviro is the best axial flow fan manufacturers. Aastha enviro is the finest axial flow fans supplier. Aastha enviro is the leading Axial Flow Fan Blower Supplier in delhi ncr. We manufacturer axial flow fans.
